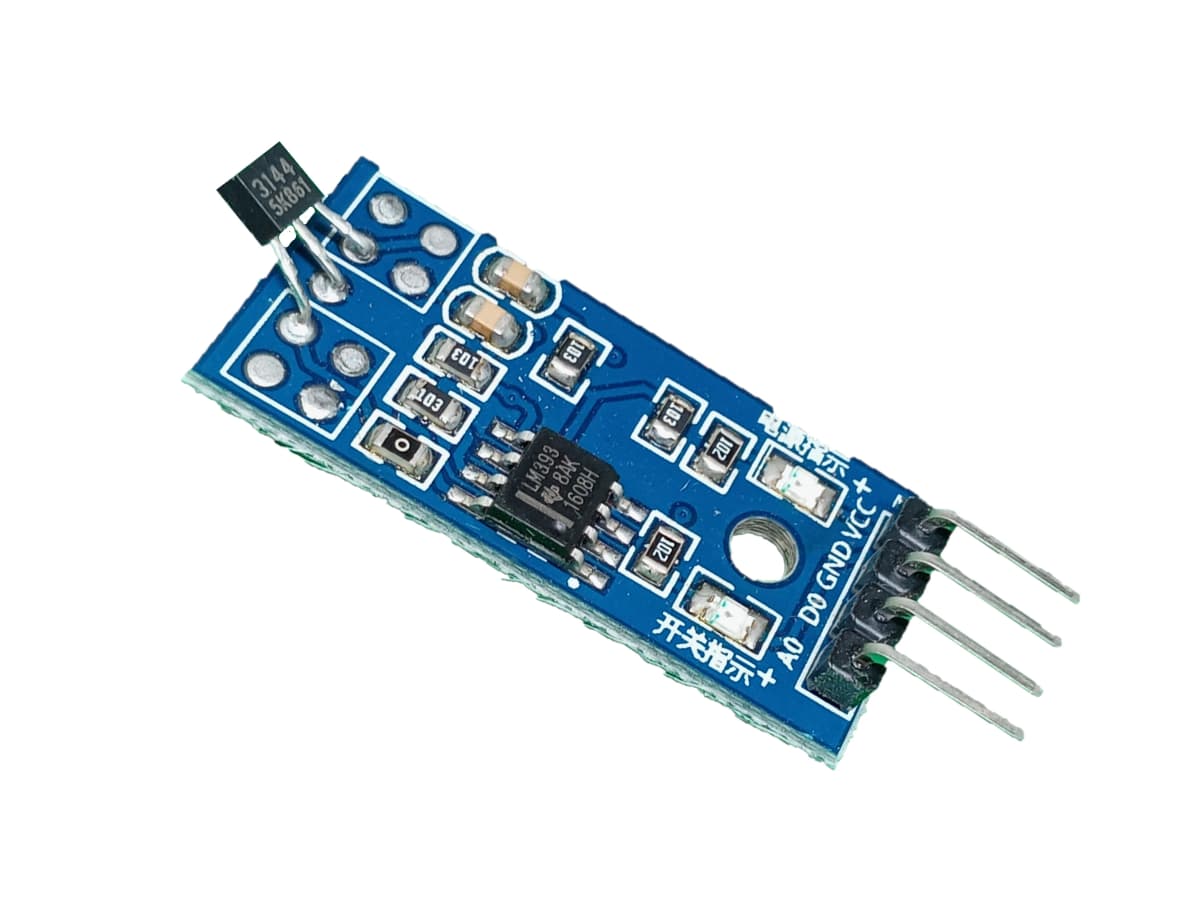

Hall Sensors Module 3144E 4pin Hall Switch Speed Magnetic Swiches

3144E Hall Sensor Module - Hall Switch Speed Counting Sensor Module

The 3144E Hall Sensor Module is a compact and efficient magnetic field sensor designed for a wide range of applications, including speed counting, position detection, and magnetic field sensing. At the heart of the module is the Hall Effect Sensor, which operates by detecting the presence of a magnetic field perpendicular to the sensor’s surface.

This module offers a digital output, making it simple to interface with microcontrollers and digital circuits. When a magnetic field is detected, the sensor outputs a clear digital signal, allowing you to easily monitor changes in magnetic fields or the speed of rotating objects. Its low power consumption and small form factor make it ideal for battery-operated devices and space-constrained projects.

Features

• Low Power Consumption

• High-sensitivity Hall effect sensor
• High-speed response
• Digital output
• Compatible with Arduino and other microcontrollers

• Easy to use and integrate

Specifications

• Operating Voltage: 3.3-5V DC
• The comparator output capability 16mA

• Mounting screw hole of 3mm
• Interface: 4-pin

• Temperature Range: -40°C to +85°C
• Dimensions: 32mm X 14mm

Package Includes

• 1x 3144E Hall Sensors Module
