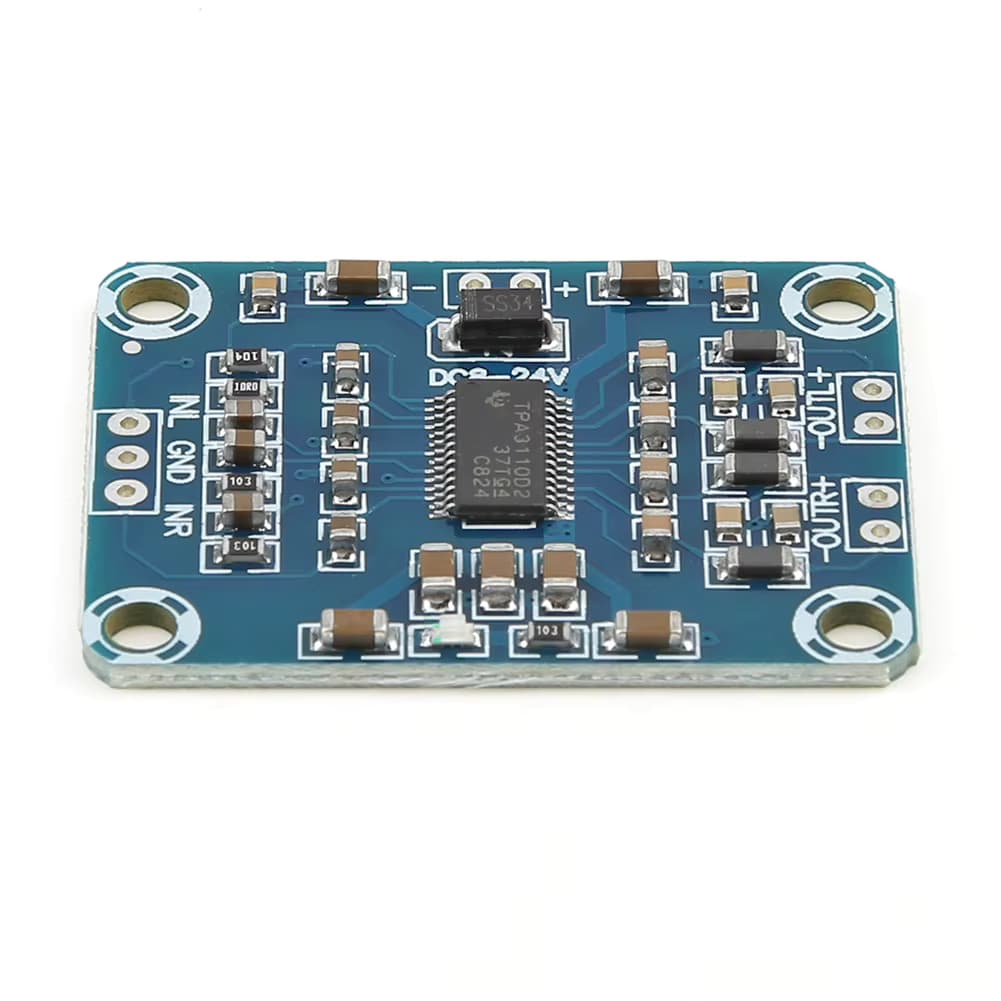

DC8V-24V 2X15W Digital Audio Power Stereo Amplifier Module Board TPA3110 12V Class D Power AMP Board 2.0 channel

The TPA3110 2x15W Digital Stereo Amplifier Module is a high-efficiency, compact Class D amplifier designed to drive stereo audio with excellent sound quality. Operating from a DC 8V-24V power supply, this module delivers 15W per channel with minimal heat generation, making it perfect for portable speakers, audio systems, or DIY electronics projects.

Specifications:

• Power Supply: DC 8V to 24V (Wide voltage range for flexibility in different applications)
• Output Power: 2x15W (15W per channel at 4Ω speaker load)
• Amplifier Type: Class D (Digital, highly efficient, low heat dissipation)
• Channels: Stereo (2.0 channel output)
• Input Voltage Range: 8V to 24V (recommended for optimal performance)
• Frequency Response: 20Hz - 20kHz (full-range audio)
• Total Harmonic Distortion (THD): < 0.1% (provides clear, distortion-free audio)
• Efficiency: Up to 90% (low power loss, more power to the speakers)
• Speaker Impedance: 4Ω to 8Ω (compatible with most standard speakers)
• Signal-to-Noise Ratio (SNR): ≥ 95dB (for high-quality audio output)
• Dimensions: Compact size for easy integration into projects
• Protection Features: Overcurrent, thermal, and short-circuit protection
